DOUBLE HEAD SOLDERING ROBOT(R501DH) R501DH
Collect
NO SOLDERING ROBOT

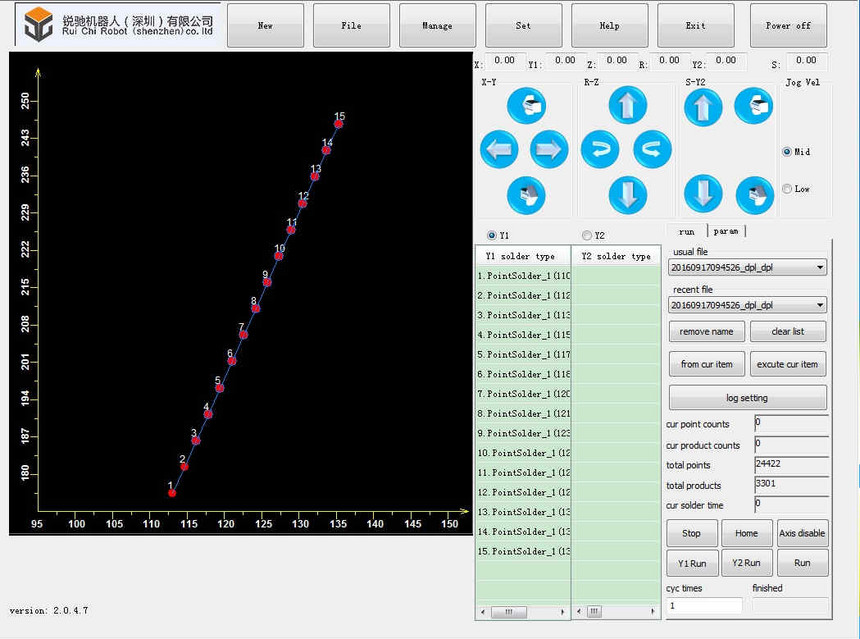

SMART OPERATION SYSTEM MAIN WINDOW

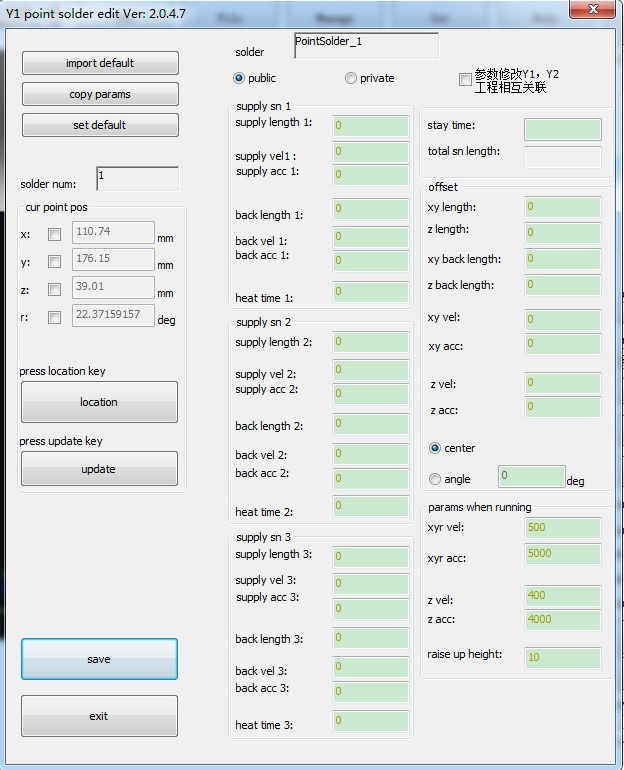

SPOT SOLDERING SETTING

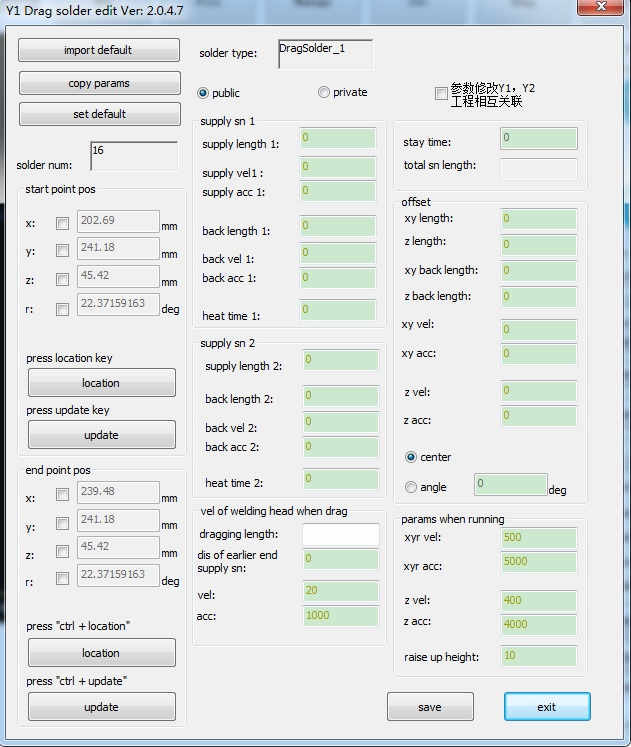

automatic soldering robot feeding tin as ternary form, pre-heat tin DRAG SOLDERING SETTING

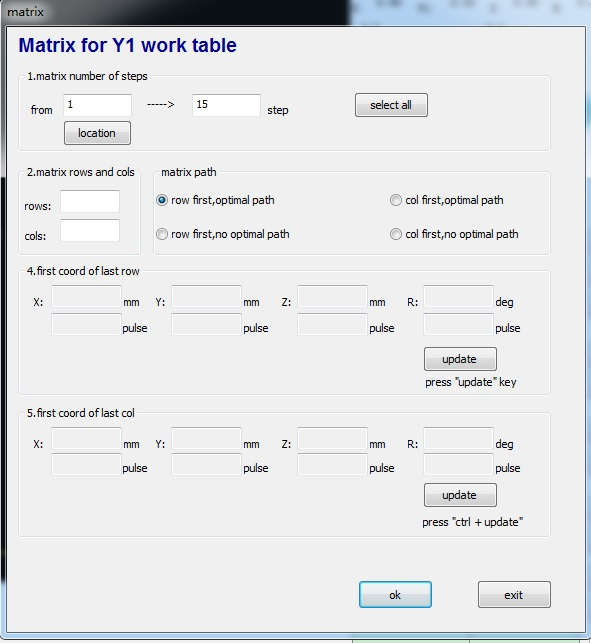

MATRIX SOLDERING SETTING

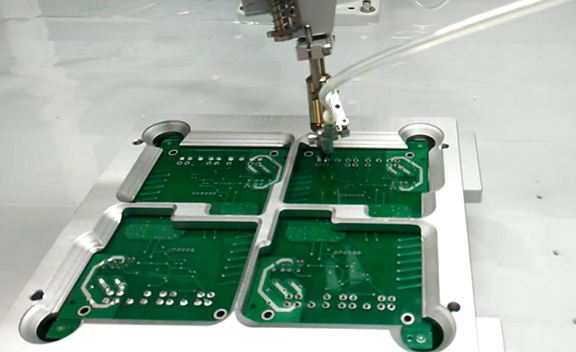

automatic soldering robot enable for matrix soldering for mass and equal matrix soldering spot PARAMETER DUPLICATE

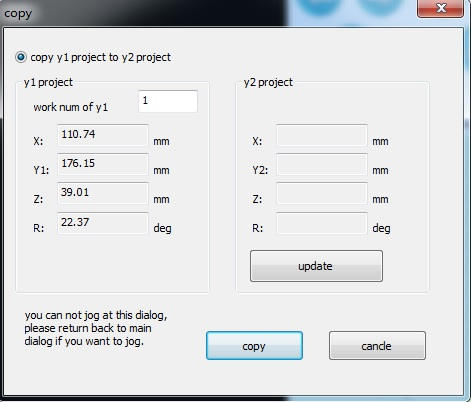

Smart soldering OS allow data copy to different PC or different work stations. PARAMETER FILE

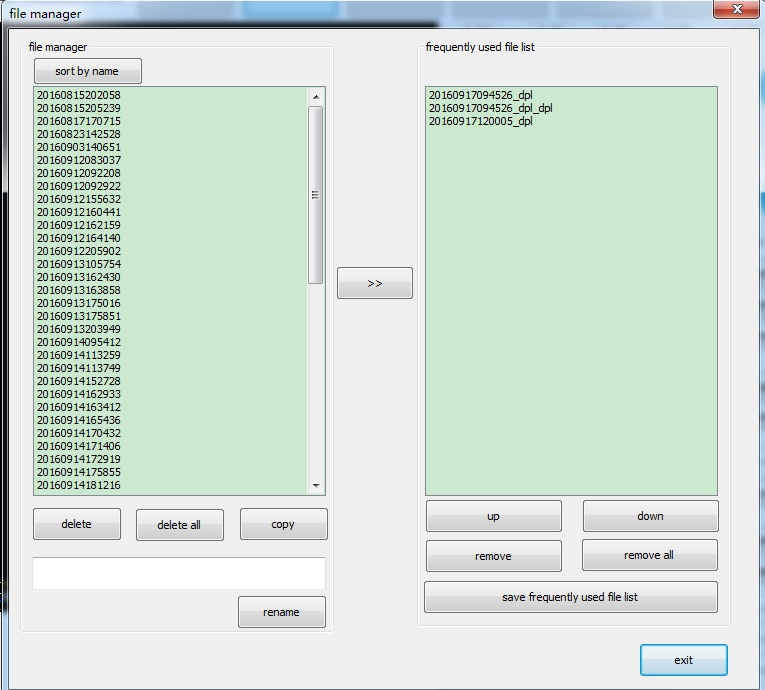

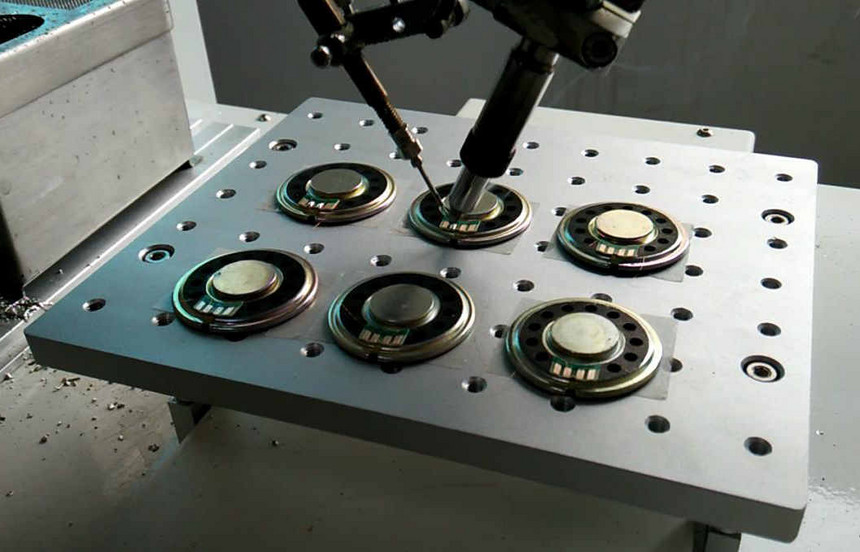

Each parameter file of different products DIFFERENT APPLICATIONS OF AUTOMATIC SOLDERING ROBOTAUTOMATIC SOLDERING FOR EARPHONEFor those small size simple products Solder Added process a standard fixture of automatic soldering robot satisfied.

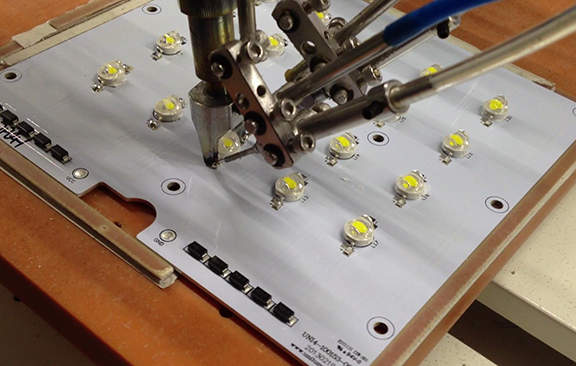

LED LIGHT SOLDERINGLED illumination industrial is the early one modernize to equip this autmatic soldering robot

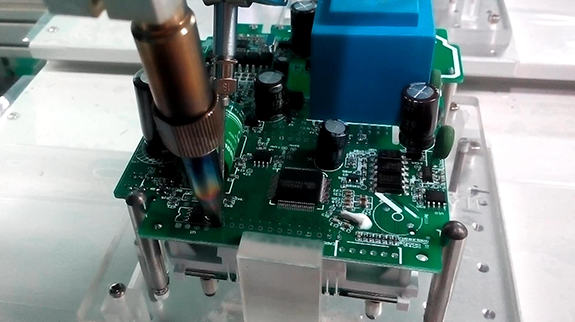

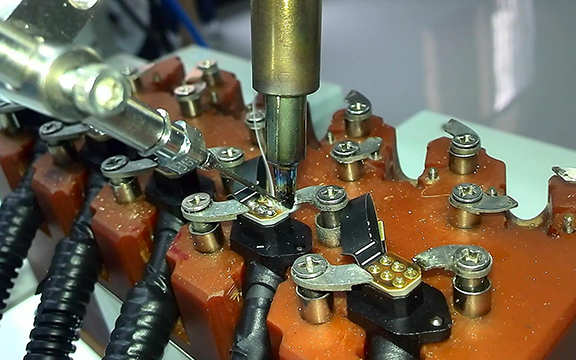

ELECTRICITY METER SOLDERINGAutomatic soldering robot R351 stable running for different PCB which installed dense elements fast solder without hurt during tiny gap soldering
INDUSTRIAL ELECTRIC WIRE SOLDERINGFor lead free soldering for large size industrial wire soldering ,build larger power soldering tip.

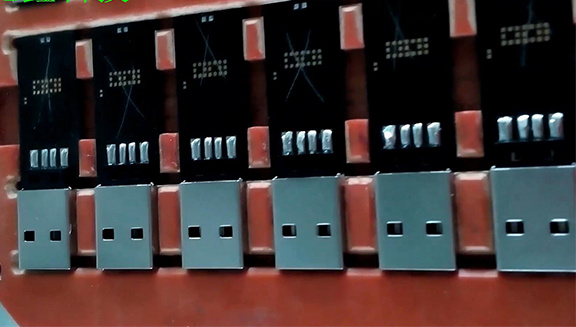

USB FLASH DISK SOLDERINGR351 soldering robot this model access for different electronic soldering to create a round and perfect soldering spot for a good quality USB flash we OEM tips for different products.
MILITARY PRODUCTS PCB SOLDERINGThe most precision demand of military and aviation products request the best soldering process, R351 soldering robot service many of this companies
MAIN COMPONENTSINTERACTION TOUCH SCREENTouch screen interface,simple taps to operate this soldering robot,visual programming perfect explain of smart experience.Monitoring all the moving tracks to make soldering machine working available.
TEMPERATURE SYSTEMHigh frequency induction heating system with touch screen control panel simple tap for temperature setting. Innovative solder temperature algorithm enable it rapid temperature recovery,make sure soldering robot created perfect solder
SOLDERING HEADThe key of soldering robot--Heating element adopts silver coil. Induction type soldering tip heating speed is very fast temperature returning between finish a solder spot to the nex .With the 330 degrees rotation axis,R351 robot suitable for most different angle of welding products.
SOLDER FEEDERHigh precision soldering wire feeding part synchronize work by smart soldering OS driving which can reach 0.1mm feeding accuracy, wire piercing wheel pre-process the soldering tin let solder faster on the soldering tip ,this is important detail for improve the soldering quality.
SOLDERING TIPSFree to design unique soldering tip for each clients,scientific design saving 1/5 to 1/4 solder tin compare others. Suitable for different special research or develop purpose.
SOLDERING TIP CLEANINGThe soldering head will go back to be cleaned by air automatically after finish a soldering spot of seted parameter in the program. clean soldering head to keep the soldering quality good.
STANDARD FIXTUREStandard fixture is included when the soldering robot ship. Customized fixture is designed according to customer's requirement
CUSTOMIZE FIXTUREStandard fixture is included when you get the machine. Customized fixture can be designed according to customer's requirement.
MOTION SYSTEMSAll control elements install firm on this base metal plate, industrial PC, X Y Z R axis step motor driver, motion controller,protection parts,air cylinder controler, power controller etc. Its the body of the automatic soldering robot.
EXTEND PORTSUSB Ports and LAN -- advance design for generation update and access to different production line,this is a robot with more idea for industrial suitable.
WIRELESS REMOTE CONTROLERThe wireless remote controller access most control from the industrial PC, assist you more easy to programming on the soldering robot,
